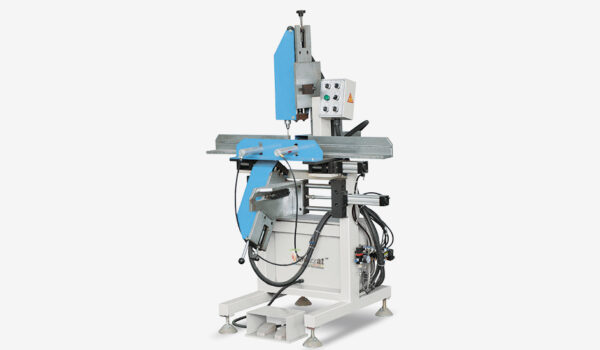

WATER SLOT MILLING MACHINE HTWS-30X6
Water Slot Milling Machine
Features
- Used for milling all kinds of water slots and air pressure balance grooves.
- Special feeding system, need no special Main-tenance, high milling quality.
- The length of milling water slot within 60mm is adjustable and its usage range is wide.
- The upper two miiling heads can Work to gether with the lower one or the horizontal one to meet various processing requirement.
Technical Parameter
Input Voltage | 220V/50Hz |
Input Power | 0.38KW*2 |
Air Pressure | 0.5～0.8MPa |
Air Consumption | 30L/min |
Motor Rotary speed | 2500r/min |
Milling cutter diameter | 5, 4mm |
Slot depth | 30mm |
Slot length | 30-60mm |
Overall dimension | 2100 X 860 X 15000mm |
Main Accessory
- Motor – Sanyang
- PLC – >Maikang
- Milling cutter – Weike
- Cyliner – Baide
- FRL – STNC
- Air tube – Ashun, taiwan
- Motor – Hitachi, Japan
