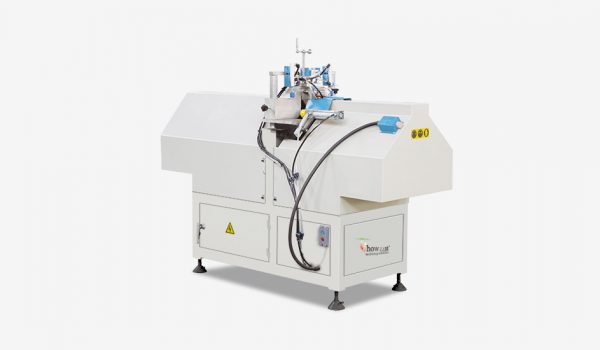

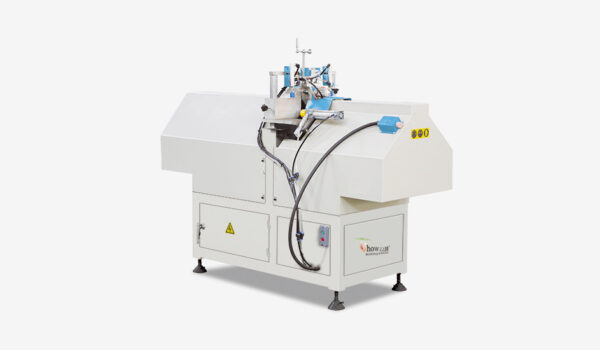

Mullion Cutting Machine

Features

  • Used for mullion cutting.
  • One time two V shape cutting.
  • Horizontal structure for high cutting precision.
  • Patent technology to prevent collapse during cutting procedure.

Technical Parameter

Input Voltage

380V/50Hz

Input Power

3KW

Air Pressure

0.5-0.8MPa

Air Consumption

15L/min

Motor Rotary Speed

2800r/min

Cutting length

300-2100mm

Cutting width X height

120 × 110mm

Overall dimension

7500×1700×1390mm



Main Accessory

  • Motor – Zhenyang
  • Saw blade – Weike
  • Cyliner – Baide
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
