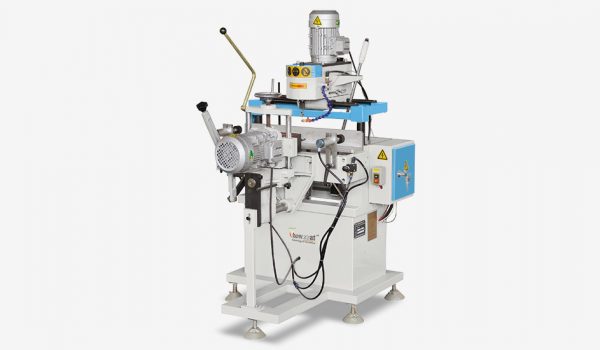

LOCK HOLE MILLING MACHINE HTLH
Lock Hole Milling Machine
Features
- Used for copy routing processing various kinds of holes, grooves and water-slots.
- Profile modelling by profiling mound plate and auxillary positioning for modelling.
- Three drill up and down through the hand- Wheel adjustment, No need to adjust the frame, easy operation.
Technical Parameter
Input Voltage | 380V/50Hz |
Input Power | 1.5+0.75KW |
Air Pressure | 0.4～0.6MPa |
Air Consumption | 20L/min |
Milling Cutter Diameter | Φ5mm-Φ8 mm |
Motor Rotary Speed | 12000/910r/min |
Copy Routing Range | 300mm×100mm |
Overall Dimension | 1000×1500×1600mm |
Main Accessory
- Motor – Sanyang
- Milling Cutter – Weike
- Cyliner – Baide
- FRL – STNC
- Air Tube – Ashun, Taiwan
- Spindle – Mute optimization
