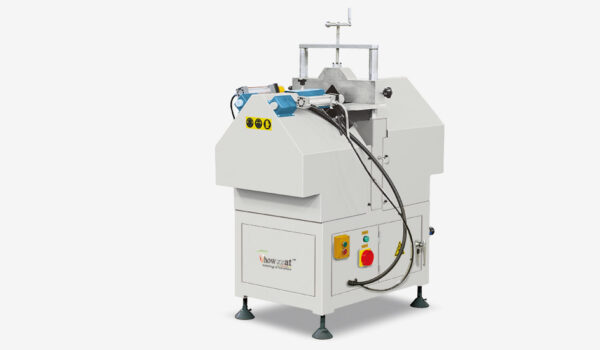

V CUTTING SAW HTVC 60

v-cutting-machine

V Cutting Machine

Features

  • For 90°V shaped Groove cutting.
  • Pneumatic driving, easy operation.
  • Smoothly feeding and high cutting precision.

Technical Parameter

Input Voltage

380V/50Hz

Input Power

1.50KW

Air Pressure

0.5~0.8MPa

Air Consumption

30L/min

Motor Rotary speed

2800r/min

Cutting Length

300-1600mm

Cutting Width × Height

120×20-65mm

Overall dimension

1800*1380*1300mm



Main Accessory

  • Motor – Sanyang, Anhui
  • Saw blade – Weike
  • Cylinder & Valves – Easun
  • Solenoid Valve – STNC
  • Air tube – Ashun, taiwan
  • Sliding seat – With dustproof device
