DOUBLE HEAD WELDING MACHINE

Double-Head-Welding-Machine

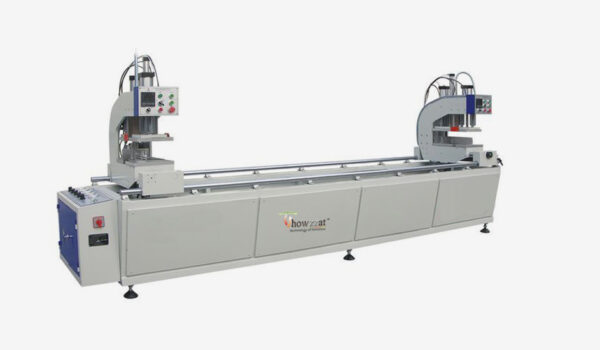

Double Head Welding Machine (135mm Welding Height,V - Welding & Single Phase)

Features

  • 135mm Welding Height, V Welding
  • Single Phase PLC controls the welding action / program, high reliability.
  • Welding heads can Work separately or jointly.
  • Free angle welding of right Machine head.
  • Parameters can be set to meet various profiles processing requirements.
  • High welding precision.
  • Imported temperature controller and other Main elecrtric components.

Technical Parameter

Input Voltage

220V/50Hz

Single Phase

Input Power

2.5KW ( 4hp)

Air Pressure

0.5-0.8MPa

Air consumption

140L/min

Weight 650Kg

Welding height

20-135mm

Welding Range

400-3500mm

Overall dimension

4300×1100×1700mm

Main Accessory

  • Cyliner – Huatong
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
