TOP AND BOTTOM CLEANING MACHINE

top and bottom

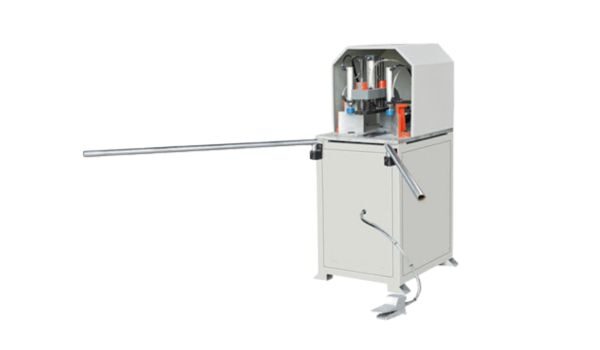

Top & Bottom Cleaning Machine

Features

  • Cleaning the up / bottom surface and the external corner.
  • Special cutter to clean the external corner.
  • Need change cutter to clean different kinds of profiles.
  • The machine program control, Pneumatic transmisión, a floating pressure regulating broach structure.
  • Suitable for different specification, level of profile, is necessary equipment for plastic doors and Windows batch production

Technical Parameter

Input Voltage

380V/50Hz

Input Power

1.1KW

Air Pressure

0.5~0.8MPa

Air Consumption

30L/min

Motor Rotary Speed

2800r/min

Saw Blade Specification

110*30 mm diameter

Profiles Width

25-90mm

Profiles Height

25-120mm

Overall dimension

1050×670×1370mm

Main Accessory

  • Motor – Zhenyang
  • Saw blade – Weike
  • Cyliner – Baide
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
