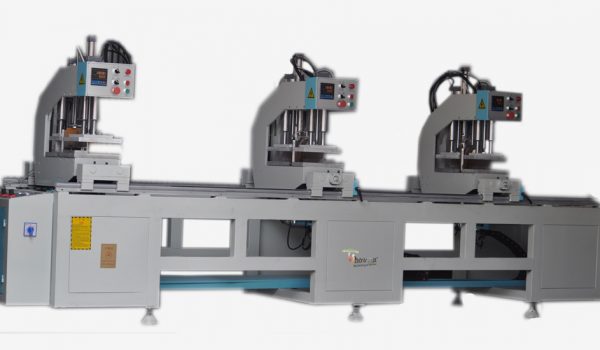

THREE HEAD WELDING MACHINE
Three Head Welding Machine 135mm Welding Height & V Welding Can do
Features
- PLC controls the welding action / program, high reliability.
- Machine heads can Work separately or jointly.
- Free angle welding of right machine head.
- Parameters can be set to meet various profiles processing requirements.
- High welding precision.
- Imported temperatura controller and other Main elecrtric components.
- Good welding corner appearance.
Technical Parameter
Input Voltage | 220V/50Hz Single Phase |
Input Power | 3.5KW |
Air Pressure | 0.5-0.8MPa |
Air consumption | 200L/min |
Welding Height | 135mm |
V welding | Can Do |
Welding Range | 400-3500mm |
Overall dimension | 4300×1100×1700mm |
Main Accessory
- Cylinder – Huatong
- Ac Condenser – Scheduler
- Air Filter – STNC
- Solenoid Valve – STNC
