FOUR HEAD SEEMLESS WELDING MACHINE

Four-head-seamless-welding-machine

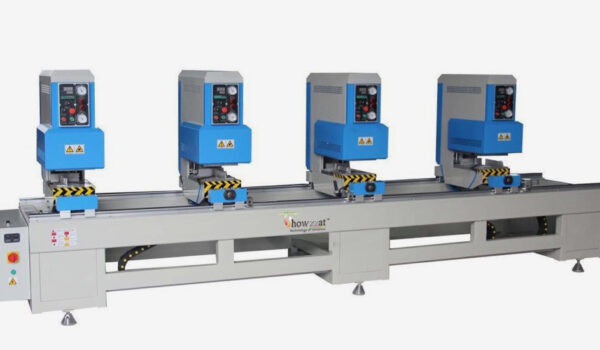

Four Head Seem Less Welding Machine

Features

  • This machine is suit of welding Colorful profile (fim laminated, double color, spray etc.) can clean all the corner at one time and can control the size of welding seam, so make the corner good-looking, top grade, and the welding strength is higher than the original one.
  • Strengthen the hardness of welding through control the Pneumatic system especially in the melting, to ensure that welding hardness is the best.

Technical Parameter

Input Voltage

220V/50Hz

Input Power

4.5 KW

Air Pressure

0.5-0.8MPa

Air consumption

260L/min

Motor Rotary speed

2800r/min

Welding height

20-100mm

Welding Range

400-4500mm

Overall dimension

5300×1100×17000mm

Main Accessory

  • Motor – Zhenyang
  • Saw blade – Weike
  • Cyliner – Baide
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
