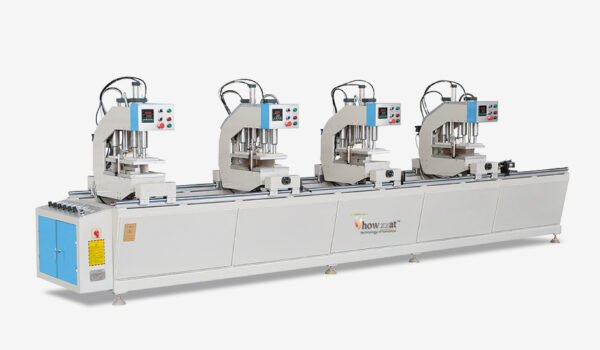

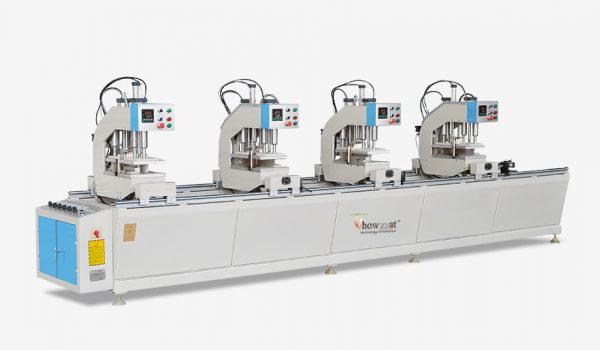

FOUR HEAD WELDING MACHINE

Four-head-welding-machine

Four Head Welding Machine 135mm Welding Height , V Welding Can Do

Features

  • PLC controls the welding action / program, high reliability.
  • Machine heads can Work separately or jointly.
  • Free angle welding of right machine head.
  • Parameters can be set to meet various profiles processing requirements.
  • High welding precision.
  • Imported temperatura controller and other Main elecrtric components.
  • Good welding corner appearance.

Technical Parameter

Input Voltage

220V/50Hz

Input Power

4.5KW

Air Pressure

0.5-0.8MPa

Air consumption

260L/min

Welding Height

135mm

V Welding

Can Do

Welding Range

400-4500mm

Overall dimension

5300×1100×1700mm

Main Accessory


  • Cyliner – Huatong
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
