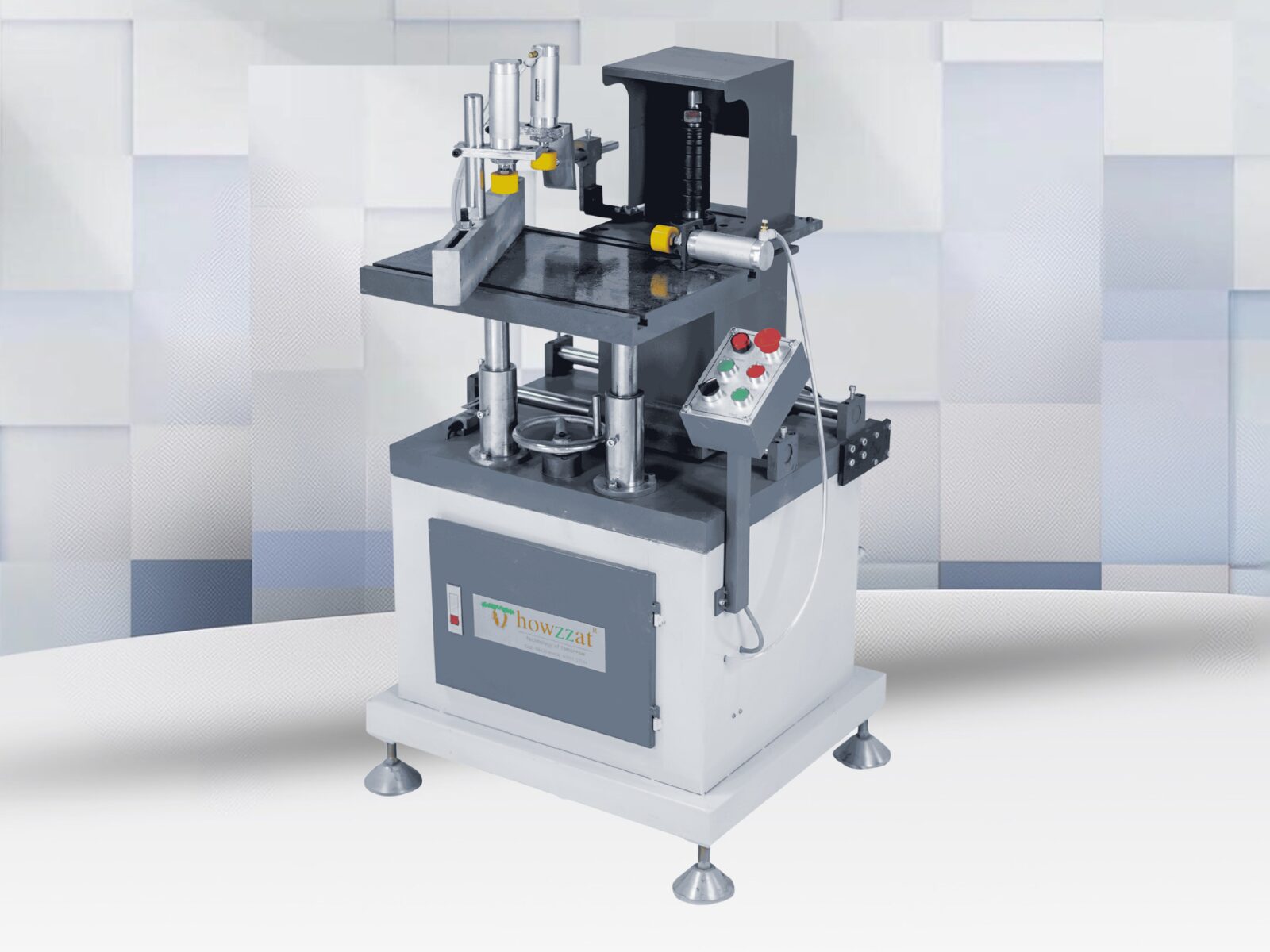

UPVC End Milling Machine
Our Upvc End Milling Machine is designed for the precise finishing of UPVC and aluminum profile ends.
Overview
Our Upvc End Milling Machine is designed for the precise finishing of UPVC and aluminum profile ends. It expertly processes step faces and end slots with an adjustable angle, ensuring profiles are perfectly prepared for a tight and secure assembly.
- Profile end preparation before assembly.
- Step face processing and end slot creation.
- Manufacturers requiring precise profile finishing for strong frame construction.
Key Features
Features
- Used for processing Aluminum profile end, step face and end slot etc.
- Super precision Main shaft insures accurate and steady processing.
- Adjustable processing angle within 35-90 degree.
- Convenient tool setting is due to adjustable worktable.
- Tool feeding adopted linear bearing motion pair, which ensured steady processing.
Key Features
- Super precision main shaft
- Adjustable worktable
- Linear bearing motion pairs
- Wide angle adjustment range
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage | 380V/50Hz |
| Input Power | 2.2KW |
| Air Pressure | 0.5-0.8mpa |
| Diameter of Main shaft | 32mm diameter |
| Milling Cutter Diameter | Φ110mm-Φ200 mm |
| Motor Rotary Speed | 1200r/min |
| Cutter adjustment | 0-80mm |
| Overall Dimension | 780×880×1350mm |
| Recommended stabilizer | Suitable servo stabilizer |
Need a current quotation?
Request QuotationFeatures
Used for processing Aluminum profile end, step face and end slot etc.
Super precision Main shaft insures accurate and steady processing.
Adjustable processing angle within 35-90 degree.
Convenient tool setting is due to adjustable worktable.
Tool feeding adopted linear bearing motion pair, which ensured steady processing.
Key Features:
Super precision main shaft
Adjustable worktable
Linear bearing motion pairs
Wide angle adjustment range
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 380V/50Hz |
| Input Power | 2.2KW |
| Air Pressure | 0.5-0.8mpa |
| Diameter of Main shaft | 32mm diameter |
| Milling Cutter Diameter | Φ110mm-Φ200 mm |
| Motor Rotary Speed | 1200r/min |
| Cutter adjustment | 0-80mm |
| Overall Dimension | 780×880×1350mm |
| Recommended stabilizer | Suitable servo stabilizer |
