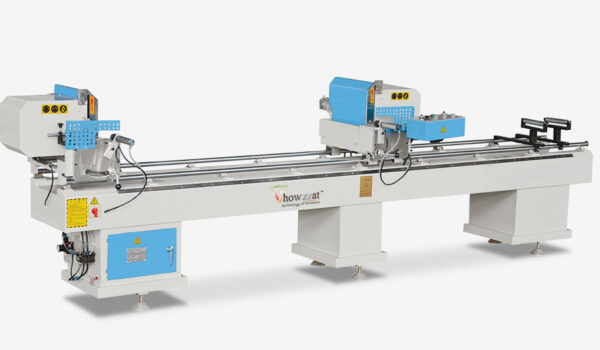

Double Head Cutting Machine HT400 X 3500

double-cutting-machine-400-x3500

Double Head Cutting Machine HT400 X 3500

Features

  • The machine is used for Cutting  the upvc profiles at angles of 45°~90°.
  • Can Cut Upto 112mm Width
  • The Pneumatic driving system is used in profiles clamping and cutting
  • It has features of high accuracy, efficiency and easy operation

Technical Parameter

Input Voltage

380V/50Hz 3 Phase

Input Power

2×1.5 KW Motor

Air Pressure

0.4-0.6MPa

Air consumption

100L/min

Motor Rotary Speed

2800r/min

Cutting Length

400-3500mm

Cutting Width × Height

112 × 200mm

Overall dimension

4200×1300×1460mm

Main Accessory

  • Motor – Zhenyang
  • Saw blade – Howzzat
  • Cyliner – Huatong Qigong
  • Ac Condenser – Scheduler
  • Air Filter – STNC
  • Solenoid Valve – STNC
