CAP SEALING / INTER LOCK PNEUMATIC PUNCHING MACHINE

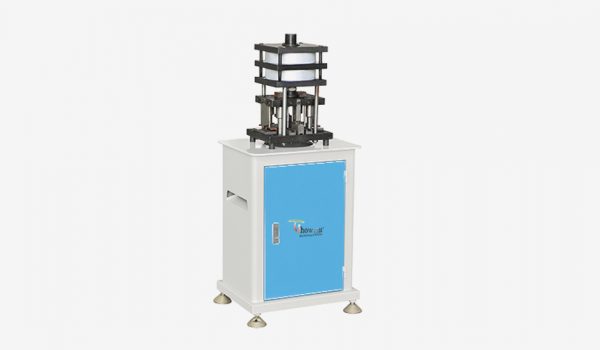

Pneumatic Punching Machine
Features
- This machine is used for the Punching of bores of Aluminum doors and Windows Smoothly and efficiently.
- The machine is used for punch hardware holes of Windows and doors and other holes or grooves inWindows and doors.
- Controled by the Pneumatic pedal and Works steady.
- The Four working position, can complete the Punching of hold hand installation groove, cutting angle and the end of the actuator.
Technical Parameter
Input Voltage | 380V/50Hz |
Input Power | 2.2KW |
Air Pressure | 0.6～0.8MPa |
Rated oil pump pressure | 16Mpa |
Press nominal pressure | 16KN |
Punching travel | 30mm |
Die contour dimension | 340*240*500mm |
Closing height | 185mm |
Overall dimension | 600×480×1320mm |
Main Accessory
- Motor – Sanyang
- Saw blade – Weike
- Cyliner – Baide
- Ac Condenser – Scheduler
- Air Filter – STNC
- Solenoid Valve – STNC
