END MILLING MACHINE

End-Milling-Machine

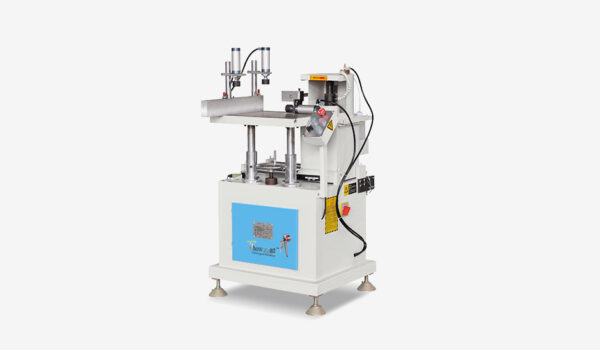

End Milling Machine

Features

  • Used for processing Aluminum profile end, step face and end slot etc.
  • Super precision Main shaft insures accurate and steady processing.
  • Adjustable processing angle within 35-90 degree.
  • Convenient tool setting is due to adjustable worktable.
  • Tool feeding adopted linear bearing motion pair, which ensured steady processing.

Technical Parameter

Input Voltage

380V/50Hz

Input Power

2.2KW

Air Pressure

0.5～0.8MPa

Diameter of Main shaft

32mm diameter

Milling Cutter Diameter

Φ110mm-Φ200 mm

Motor Rotary Speed

12000/910r/min

Cutter adjustment

0-80mm

Overall Dimension

780×880×1350mm

Main Accessory

  • otor – Sanyang
  • Milling Cutter – Weike
  • Cyliner – Baide
  • FRL – STNC
  • Air Tube – Ashun, Taiwan
  • Spindle – Mute optimization
