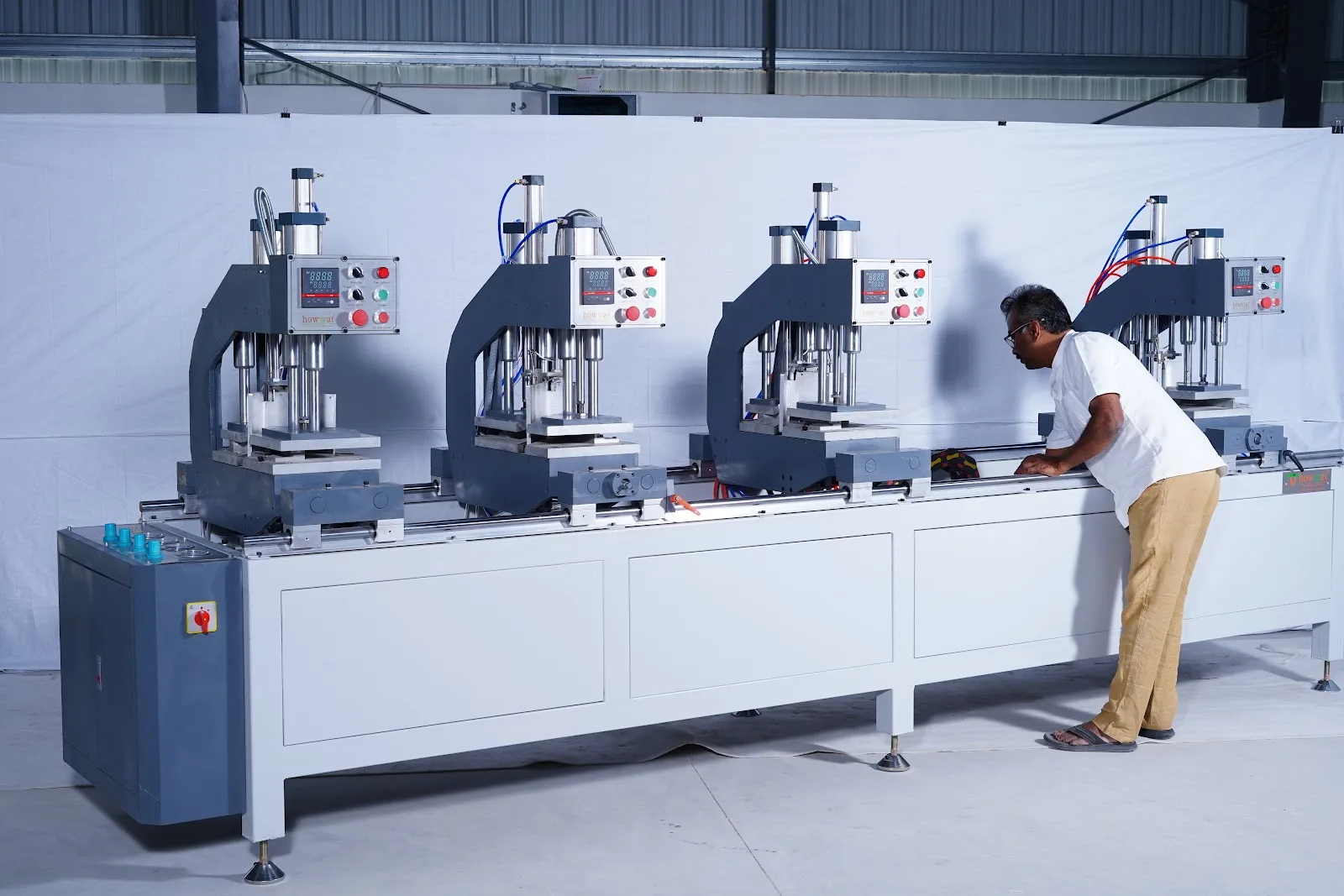

UPVC Four Head Welding Machine
Four welding heads for V-welding on standard UPVC profiles, with model-specific workshop planning and quotation confirmation.
Machine Overview
Factory production requiring four-head standard welding. Selection should consider profile dimensions, frame sizes, operator availability, supporting machines and the complete production workflow.
Output guidance
Approximately 30–50 windows per 8-hour shift as setup-level planning guidance. This figure is for reference only, not a guarantee; actual output varies with available manpower and the complete production workflow.
Suitable Applications and Key Features
Suitable buyer/workshop
- Factory production requiring four-head standard welding
- Buyers who will confirm profile dimensions and tooling before ordering
- Workshops planning power, compressed air, material flow and operator access
Key features
- Four-head configuration for complete-frame workflow
- Heads can operate separately or jointly
- Single-phase PLC-controlled operation
- V-welding support for standard profiles
Technical Specifications
| Specification | Value |
|---|---|
| Input voltage | Single Phase Power, 220 V, 50 Hz |
| Input power | 4.5 kW |
| Air requirement | 0.5–0.8 MPa; 260 L/min listed |
| Welding height | Up to 135 mm |
| Working / welding range | 400–4500 mm — Parameter Set for Various Profiles |
| Recommended stabilizer | approximately 7–8 kW servo stabilizer |
Power, Compressor and Workshop Planning
Electrical
220 V / 50 Hz, single phase. Use an approximately 7–8 kW servo stabilizer, subject to confirmation for the exact electrical setup.
Workshop
Compressor sizing depends on the complete machine combination, operating pressure and duty cycle. Allow space for profile movement, operator access and storage.
Standard Four Head Welding — Selection Guidance
Standard welding supports high-output conventional production. A visible weld bead may require cleaning; compare Seamless for premium colour/laminated-profile finish.
Price, Installation and Support
The current machine price is displayed above. Howzzat follows the same fixed machine-price policy across India. GST, freight and quotation-specific exclusions apply. Installation is free when the combined machine value in one order is ₹5,00,000 or more before GST; below this threshold it is chargeable. Warranty is 12 months from invoice date, subject to inspection and applicable terms. Post-warranty technical service is chargeable.
Installation, Warranty and Service Terms · Buying and Payment FAQs
Frequently Asked Questions
Is electrical burnout covered under warranty if a stabilizer is not used?
Use a suitable servo stabilizer for this machine; a TV or household stabilizer is not a suitable substitute. Electrical burnout or damage caused by operating without the required servo stabilizer, or with an unsuitable stabilizer, is not covered under warranty, even if it occurs on the first day or within one hour of installation. This does not exclude unrelated faults; warranty assessment follows the applicable written terms.
Who should choose this model?
Factory production requiring four-head standard welding. Final selection depends on the complete production plan.
What electrical supply and stabilizer are required?
220 V / 50 Hz, single phase; approximately 7–8 kW servo stabilizer.
Is the listed output guaranteed?
No. Output depends on profile preparation, frame design and size, operator skill, supporting machines, maintenance and workflow.
What is included in the listed price?
Confirm the written quotation. GST and freight are extra; compressor, stabilizer and hand tools are extra unless the quotation states otherwise.
What warranty and support apply?
Warranty is 12 months from invoice date, subject to inspection and applicable terms. Post-warranty technical service is chargeable.
