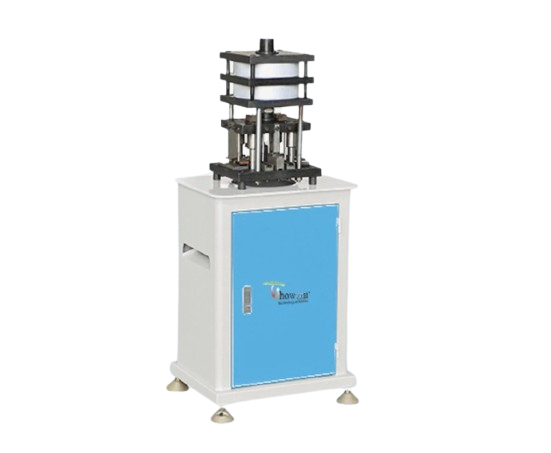

Pneumatic Punching Machine
Our robust Pneumatic Punching Machine provides the power and precision needed for all hardware-related punching. It creates clean holes for locksets, handle grooves, and actuator mounting points with a simple press of the foot pedal, streamlining your assembly process. Best For:
- Fast and accurate hole preparation for locks, handles, and other hardware.
- Streamlining the hardware installation stage of production.
- Custom hardware configurations and actuator system installations.
Features
This machine is used for the Punching of bores of Aluminum doors and Windows Smoothly and efficiently.
The machine is used for punch hardware holes of Windows and doors and other holes or grooves inWindows and doors.
Controled by the Pneumatic pedal and Works steady.
The Four working position, can complete the Punching of hold hand installation groove, cutting angle and the end of the actuator.
Key Features:
Four-Position Versatility: Enables complete processing for handle grooves, cutting angles, and actuator ends in a single setup.
Powerful & Steady: Delivers 16KN of nominal pressure for clean punching through any profile.
Simple Pedal Control: Pneumatic foot pedal control allows for hands-free, steady operation.
Specifications
| Specification | Value |
|---|---|
| Air Pressure | 0.6～0.8MPa |
| Press nominal pressure | 16KN |
| Punching travel | 30mm |
| Die contour dimension | 340*240*500mm |
