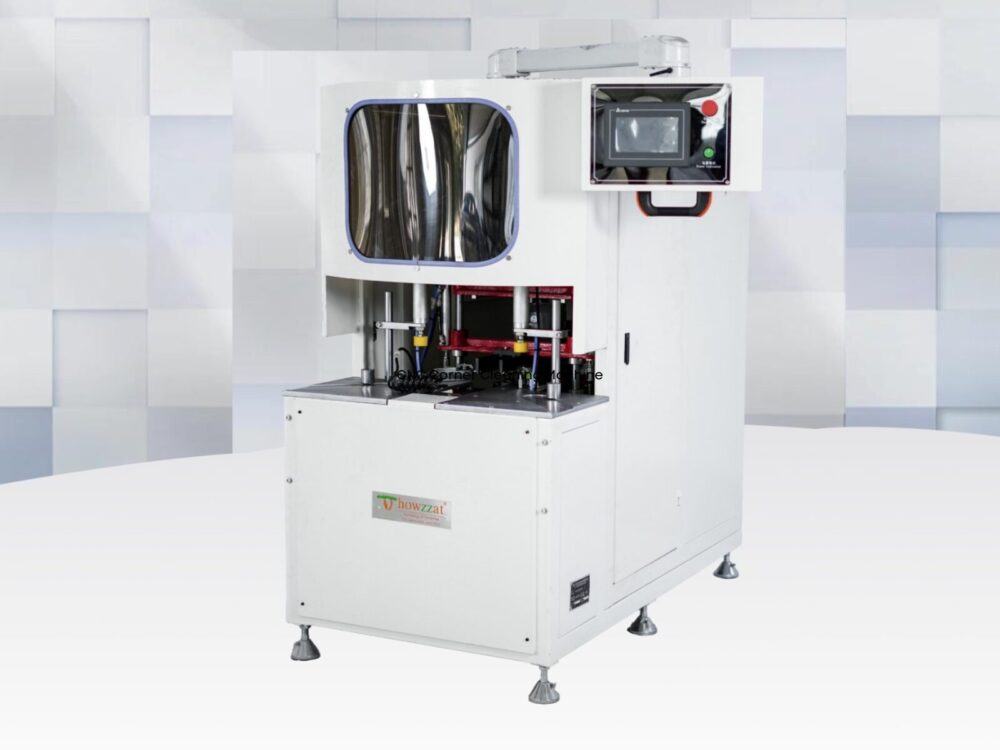

Upvc CNC Corner Cleaning Machine
The pinnacle of automated finishing, our Upvc CNC Corner Cleaning Machine uses a computer-controlled system to deliver flawless, repeatable cleaning of welding seams. Simply select the profile program, and the machine does the rest with unmatched precision. Best For:
- Large-scale, automated production lines (30+ windows daily).
- Manufacturers who work with multiple profile types and demand consistent quality.
- Operations requiring high-speed, high-precision finishing with minimal operator input.
Features
For cleaning PVC profile welding seam.
Double-Axis control system.
High processing precision due to size error compensation function.
Imported servo-drive system, computer control system, and so on, ensures reliable performance and long using life.
Can store many programs for various profile processing.
Can clean outside vertical surface, seam in the track of the sliding profile, rubber seam groove part and soon.
Key Features:
Fully Automated: Double-axis CNC control ensures perfect results with minimal operator input.
Program Storage: Save settings for various profile types for quick and easy changeovers.
High Precision: A size error compensation function maintains accuracy over long production runs.
Reliable Performance: Built with an imported servo-drive system for a long service life.
Specifications
| Specification | Value |
|---|---|
| Input Voltage | 380V/50Hz |
| Input Power | 1.7KW |
| Air Pressure | 0.5~0.8MPa |
| Air Consumption | 60L/min |
| Motor Rotary Speed | 2800r/min |
| Saw Blade Specification | Φ150* Φ30mm |
| Profiles Width | 20~120mm |
| Profiles Height | 30~120mm |
| Overall dimension | 2000×1820×150mm |
